Steel-Wood Slanted Tile Display Rack

Key Features

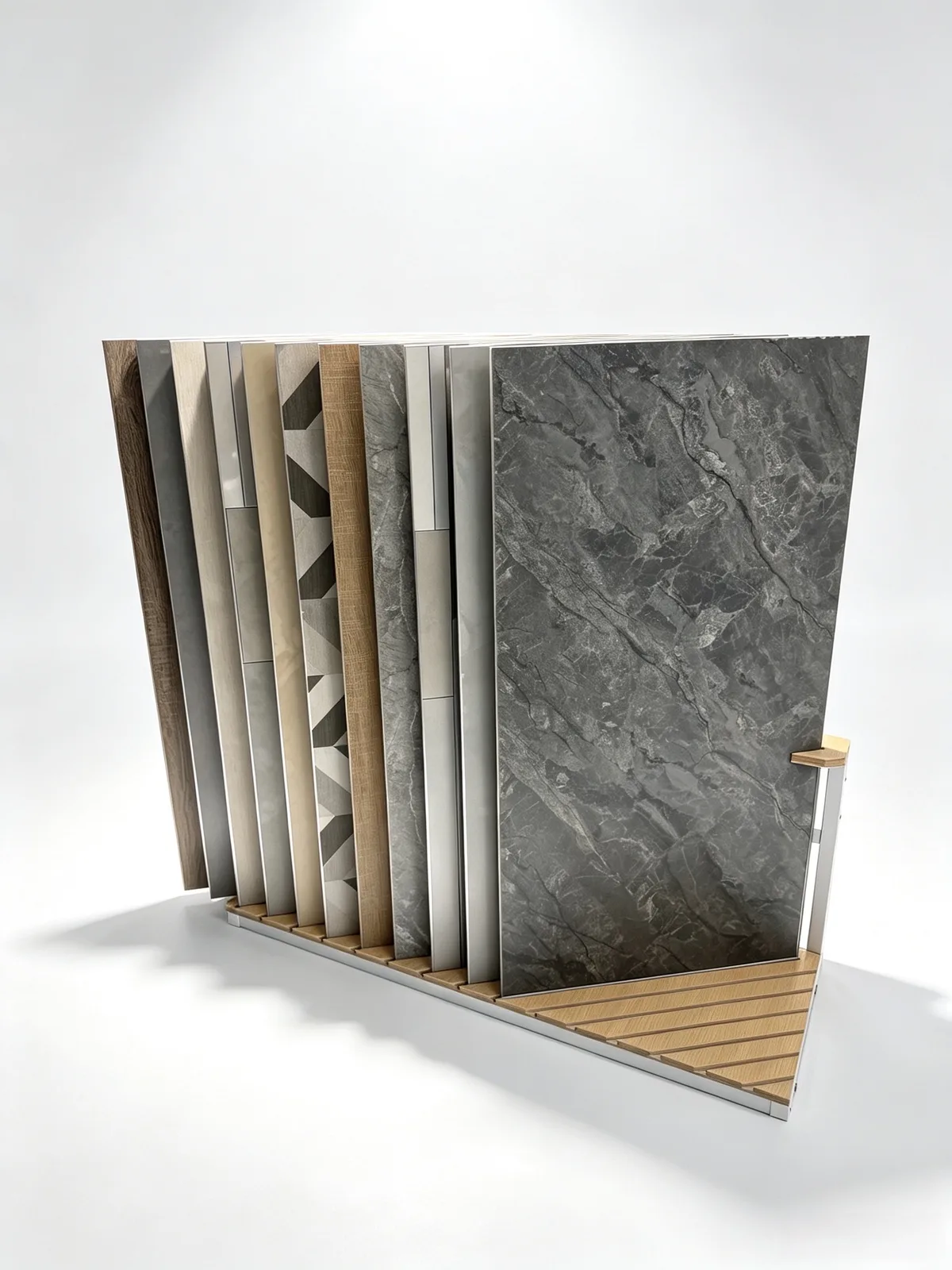

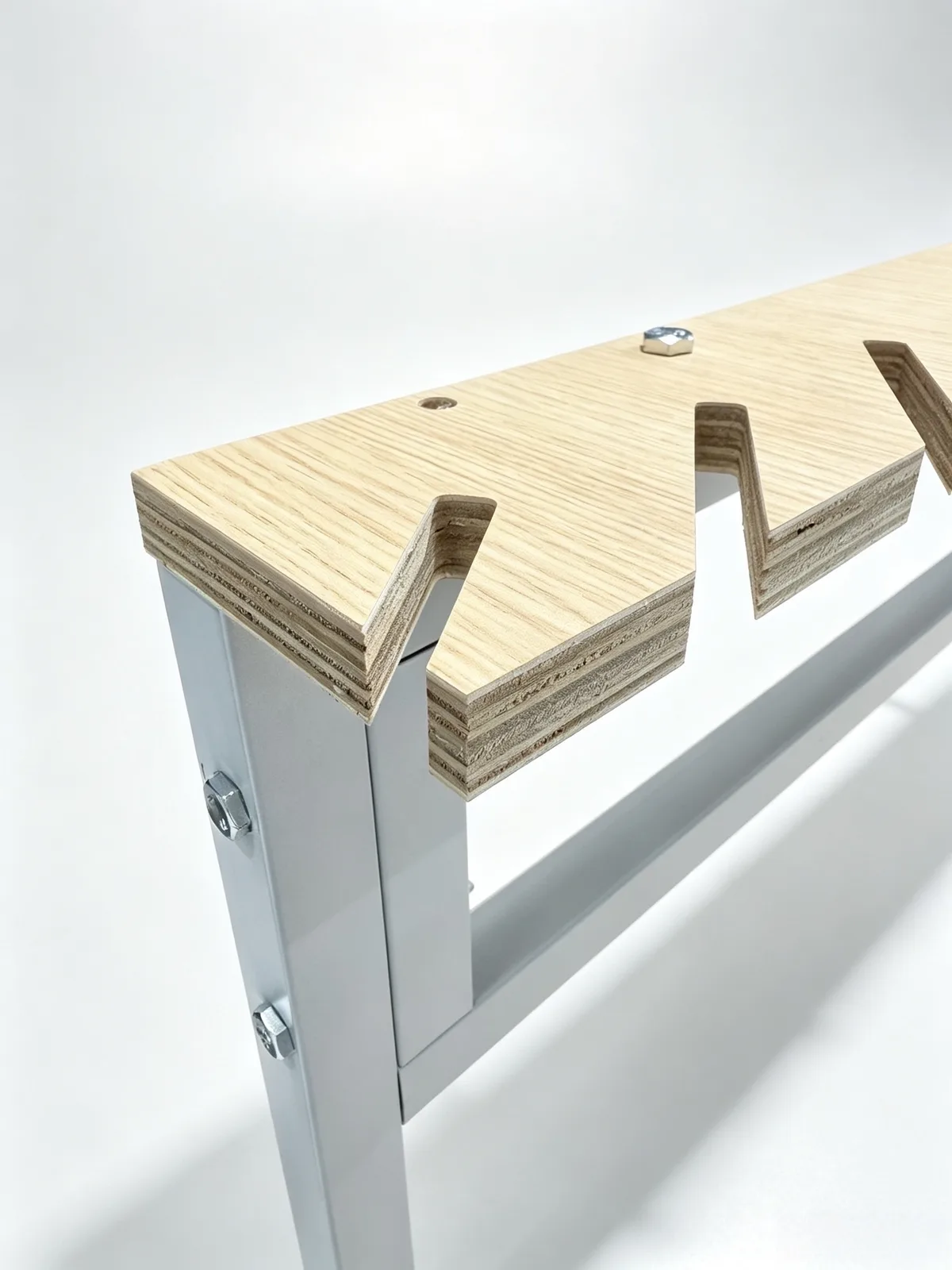

36° slanted slots show every tile face and make picking easy

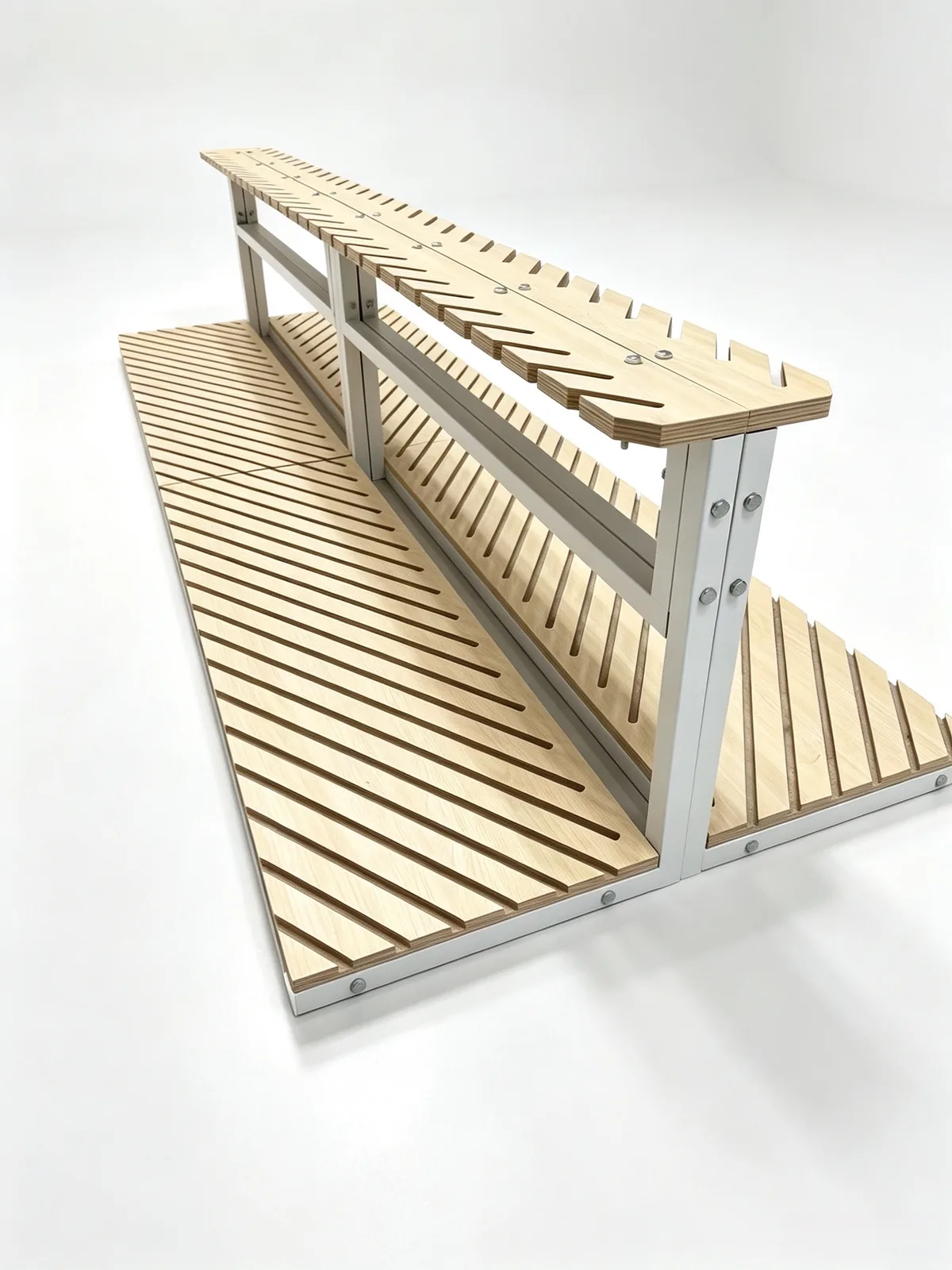

Steel-wood build: 18 mm multi-layer board + 30×30 galvanized square tube, high-temperature powder coating

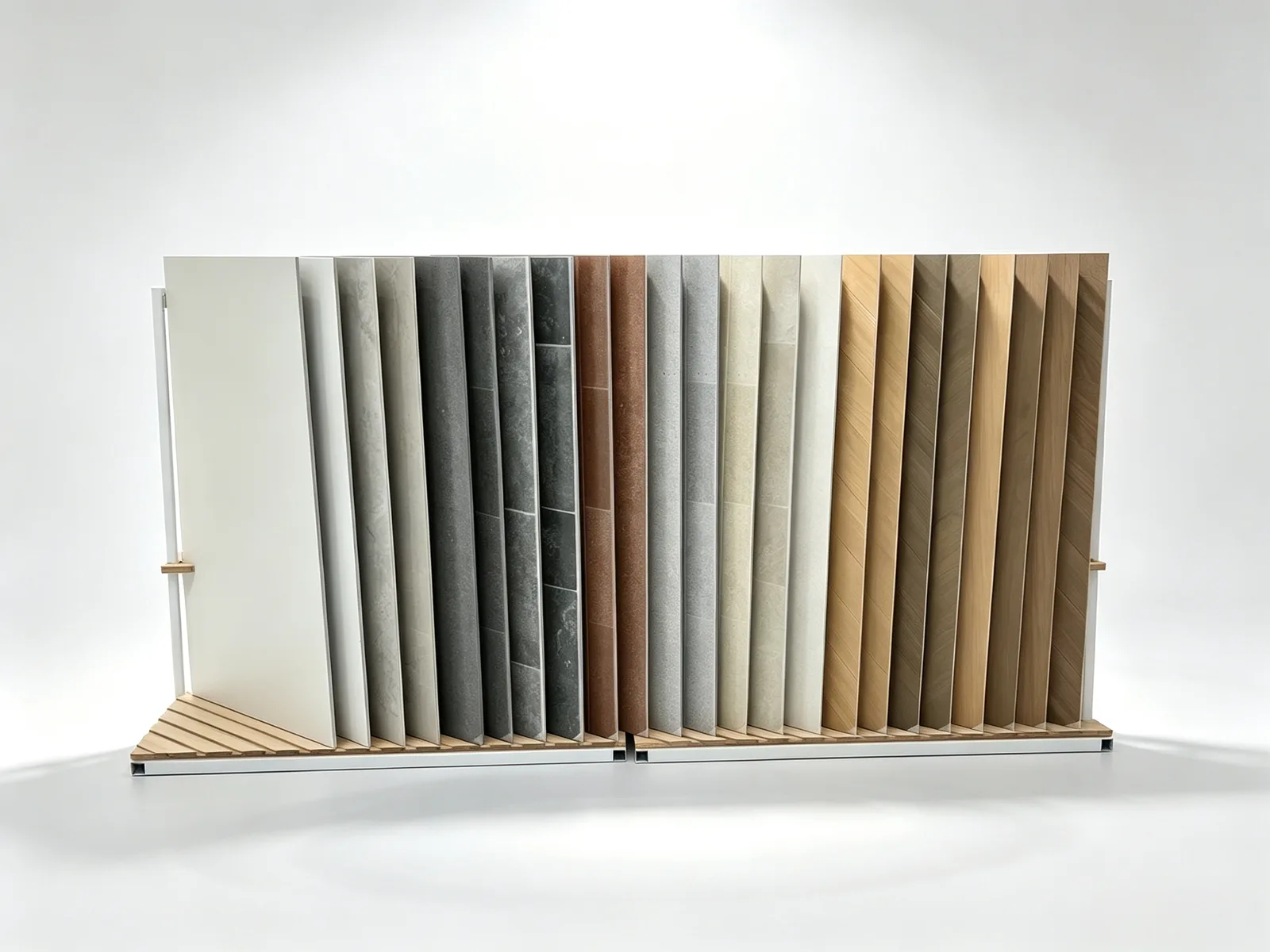

Connects without limit: Regular model holds 9 pieces per set, +15 for each extra set

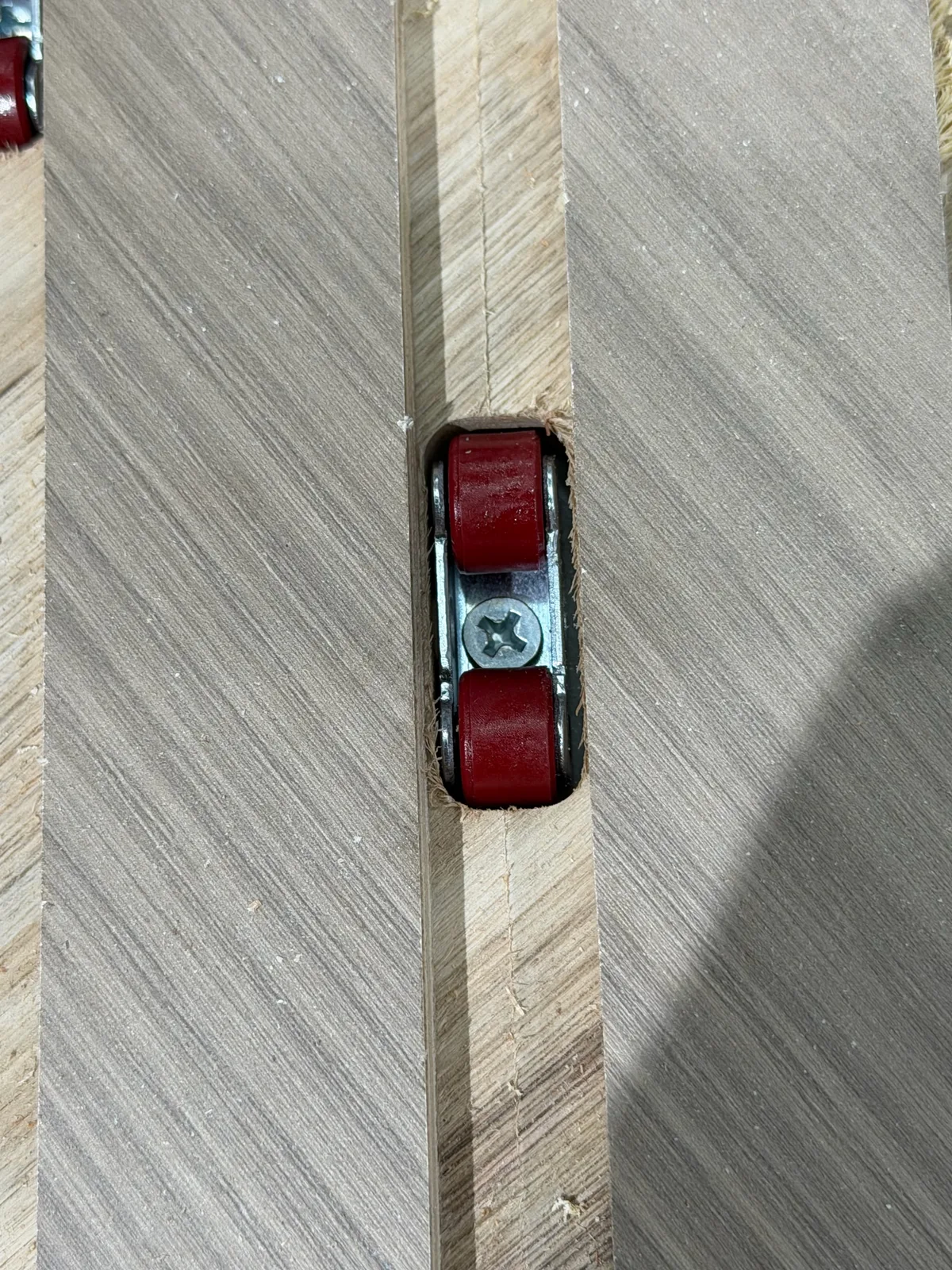

Roller, Wide-Slot Roller and Heightened models have small rollers inside the slots for smoother loading

Wide-Slot Roller model has a 20 mm slot for thicker samples such as stone and wood flooring

Heightened & Widened model: 700 mm high with a two-way reinforced frame, fits 900×1800 slabs

Every model comes in left- or right-slant

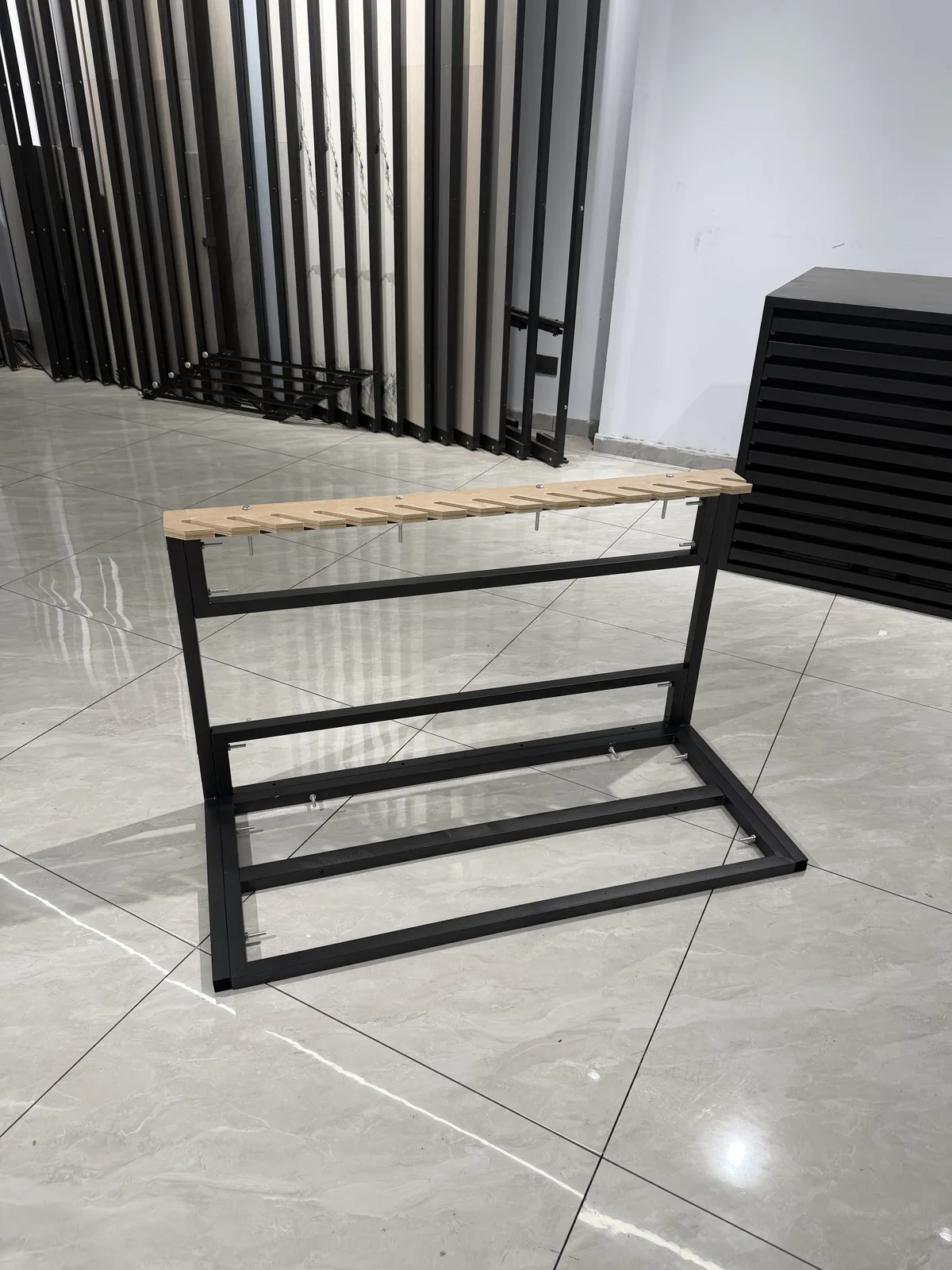

white frame standard, black frame made to order

Screw-assembled for easy setup

factory direct, custom logo for volume orders

Specifications

常规款 Regular：1200×420×450 mm，槽宽 slot 15 mm，适合 fits 300×600 / 400×800 / 600×600 / 600×1200

滑轮款 Roller：1200×420×500 mm，槽宽 slot 15 mm，槽内滑轮 in-slot rollers

宽槽滑轮款 Wide-Slot Roller：1200×420×500 mm，槽宽 slot 20 mm，槽内滑轮 in-slot rollers，适合石材/木地板 for stone & wood flooring

加高加宽加固款 Heightened & Widened：1200×530×700 mm，槽宽 slot 15 mm，共30个双轮 30 double rollers，适合 fits 750×1500 / 800×800 / 900×1800

斜角 Slant angle（常规款 Regular）：36°

容量 Capacity（常规款 Regular）：单套9片，每拼一套+15片 9 per set, +15 per added set

板材 Board：18 mm 多层板 multi-layer board

钢架 Frame：30×30 镀锌方管 galvanized square tube

表面 Finish：高温喷塑烤漆，白沙纹

黑色可定做 white sand-texture powder coating, black made to order

连接 Assembly：螺丝连接 screw-connected
